CLASSIC+ SERIES™ / MULTIPUMP® SERIES

The Classic+ Series™ / MultiPump® Series is the perfect solution for pharmaceutical, personal Care, foods, and more due to its cleanability, superior performance, and ease of maintenance. It can handle flows up to 832 GPM (189 m³/h).

Features & Benefits

Cleanability

Modular pump design promotes easy disassembly for COP (Clean Out of Place) & CIP (Clean In Place)
Casing profile cusps maximize efficiency & draining capability

Performance

Timed, non-contacting rotors minimize shear while providing extended run-dry capability
Helical timing gears provide high torque & quieter operation for extended pump life
Tapered roller bearings provide higher operating speeds & better discharge pressures

Ease of Maintenance

Removable foot for easier placement
Classic RLP design

Capacity

0 to 832 GPM
0 to 189 m³/h

Viscosity

0 to 910,000 SSU
0 to 200,000 cSt

Pressure

0 to 174 PSI
0 to 12 Bar

Temperature

0 to 355 °F
0 to 180 °C

Options

Porting

Complete range of hygienic clamp, screw, flange & industrial screw connections

Tri-clamp, flanged, DIN, IMDA, NPT, BSP, etc.

Drives

P Purchased Gear Reducer Drive

Mounting

Foot Mount

Sealing

Single O-ring

Single Mechanical

Single mechanical with flush or quench

Double Mechanical with Flush

Gland packing

Specifications

Specifications
Model	Standard Port Size	Nominal Pump Rating (GPM)	Nominal Pump Rating (m3/h)	Maximum RPM	Maximum Pressure PSI	Maximum Pressure BAR
10/0005/12	1"	17.1	3.9	1400	174	12
10/0008/08	1.5"	30.7	7	1400	115	8
10/0011/05	1.5"	41	9.3	1400	70	5
20/0020/12	1.5"	53.4	12.1	1000	174	12
20/0031/07	2"	82.7	18.8	1000	100	7
30/0069/12	2"	137.6	31.2	750	174	12
30/0113/07	3"	222.9	50.6	750	100	7
40/0180/12	3"	332.9	75.6	700	174	12
40/0250/07	4"	462.4	105	700	100	7
50/0351/12	4"	603.5	137	650	174	12
50/0525/08	6"	832.2	189	600	115	8

Videos

Acetone

Acetone is an organic compound and an important solvent used in the paints and varnishes, in resins and as a degreasing agent.

CLASSIC+

316L stainless steel
Mechanical seals

REVOLUTION®

316L stainless steel
Mechanical seals

Agave Syrup

Agave syrup, also known as maguey syrup or agave nectar is a sweetener produced from the agave plant. It is used in food and beverage products as a sweetener and often used as an alternative to honey.

TRA®10

316L stainless steel
O Ring or mechanical seals

CLASSIC+

316L stainless steel
Mechanical seals

Beer Yeast

Used in the fermentation of beer, lager and ales to turn sugars in to alcohol.

CLASSIC+

316L Stainless Steel
Mechanical seals

Beverages

A liquid consumed, other than water, typically a drink. This can include tea, coffee, alcoholic, soft drinks and fruit juices.

TRA®10

316L Stainless Steel
O Ring or Mechanical seals

CLASSIC+

316L Stainless Steel
Mechanical seals

Brine

Brines are typically water based with the addition of salts and other additives. Mainly used in the preservation, curing and flavoring of foods

CLASSIC+

316L Stainless Steel
Mechanical seals

TRA®10

316L Stainless Steel
O Ring or Mechanical seals

TSM / Catalog / Flyers / Brochures

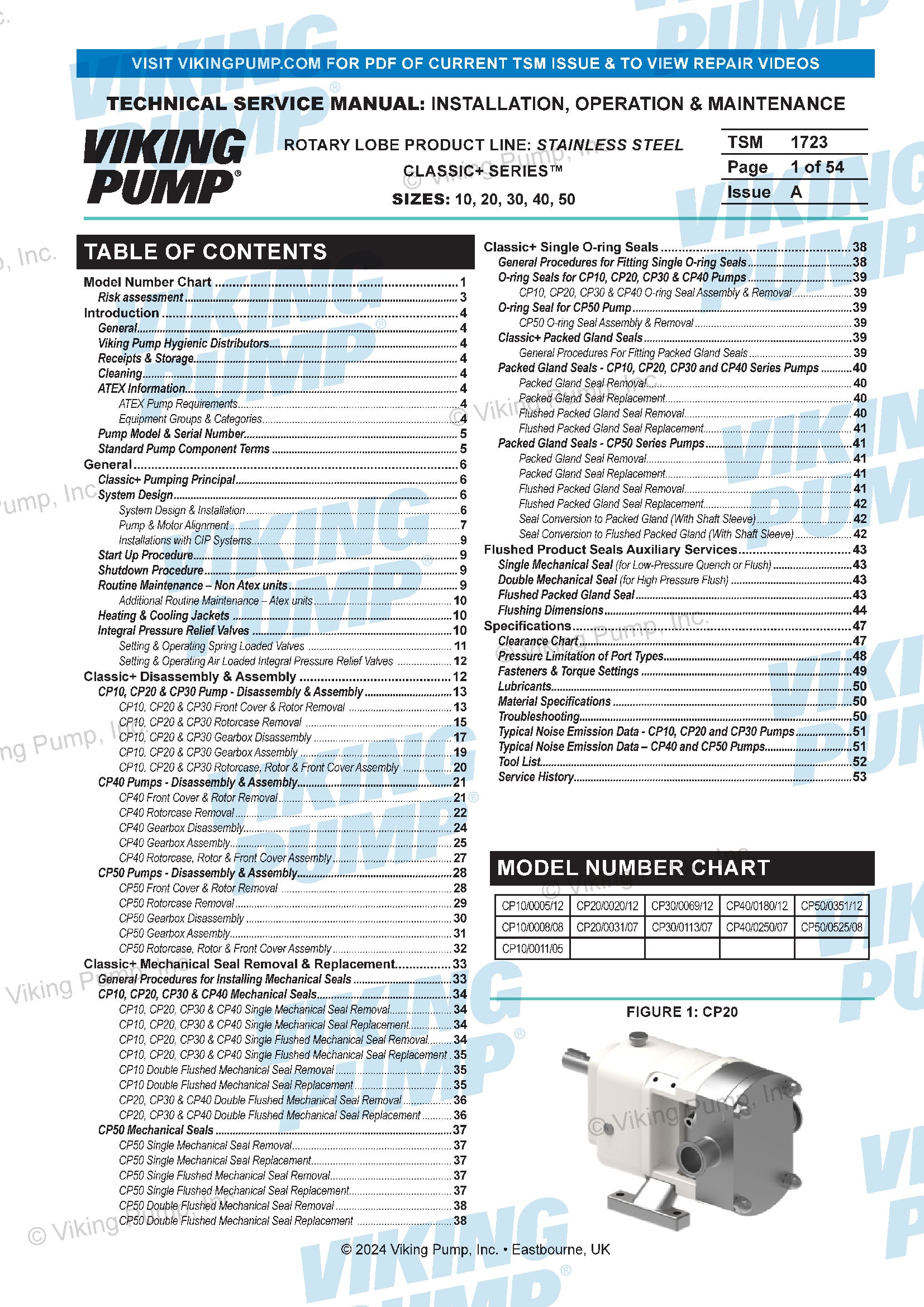

Service Manual | 1723 ClassicPLUS

Download

Technical Service Manuals

Service Manual | 1724 MultiPump

Download

Technical Service Manuals

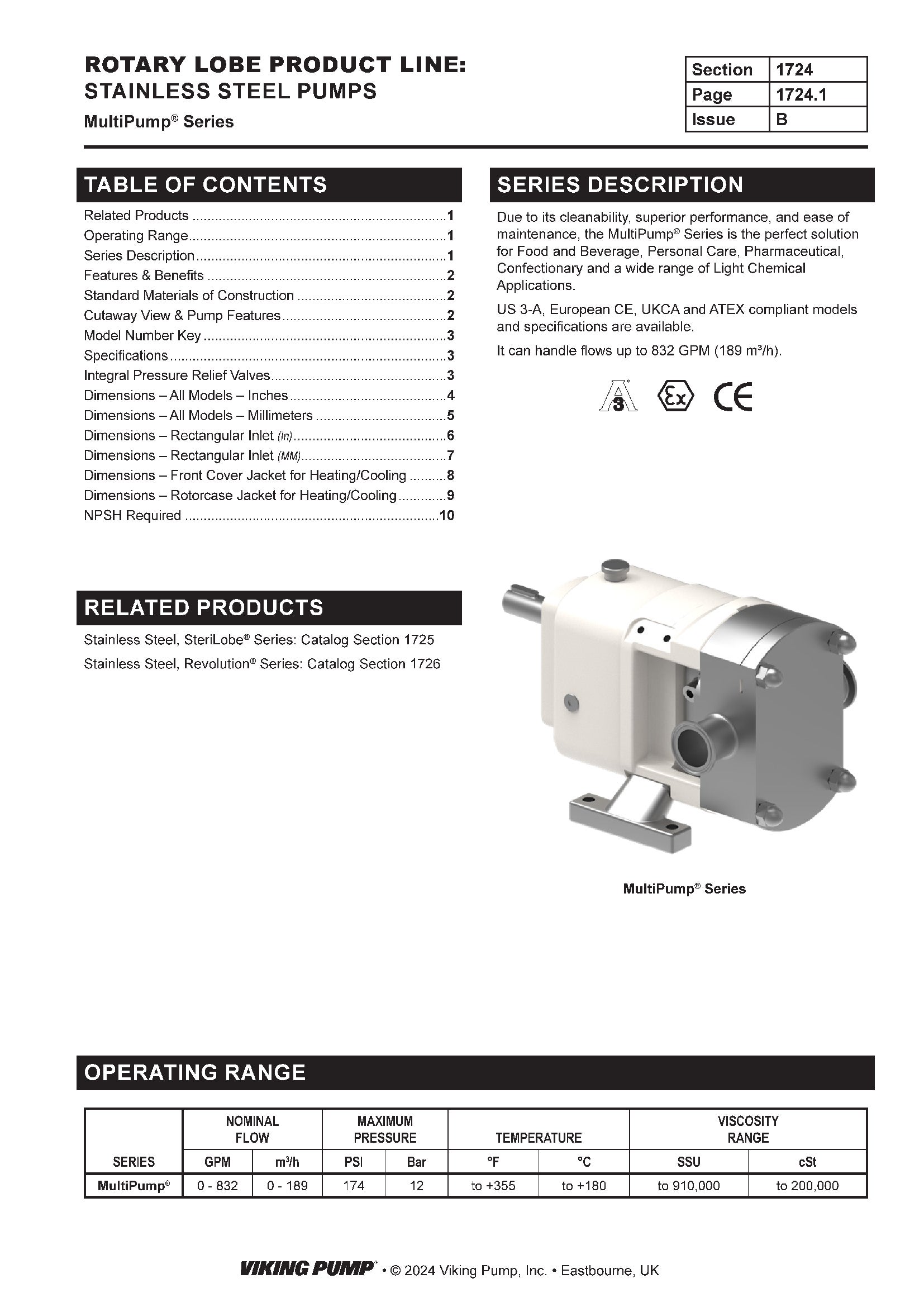

Catalog Section | 1724 | MultiPump

Download

Catalog Sections

Flyer | Form 1723 | Classic+ Series

Download

Product Flyers

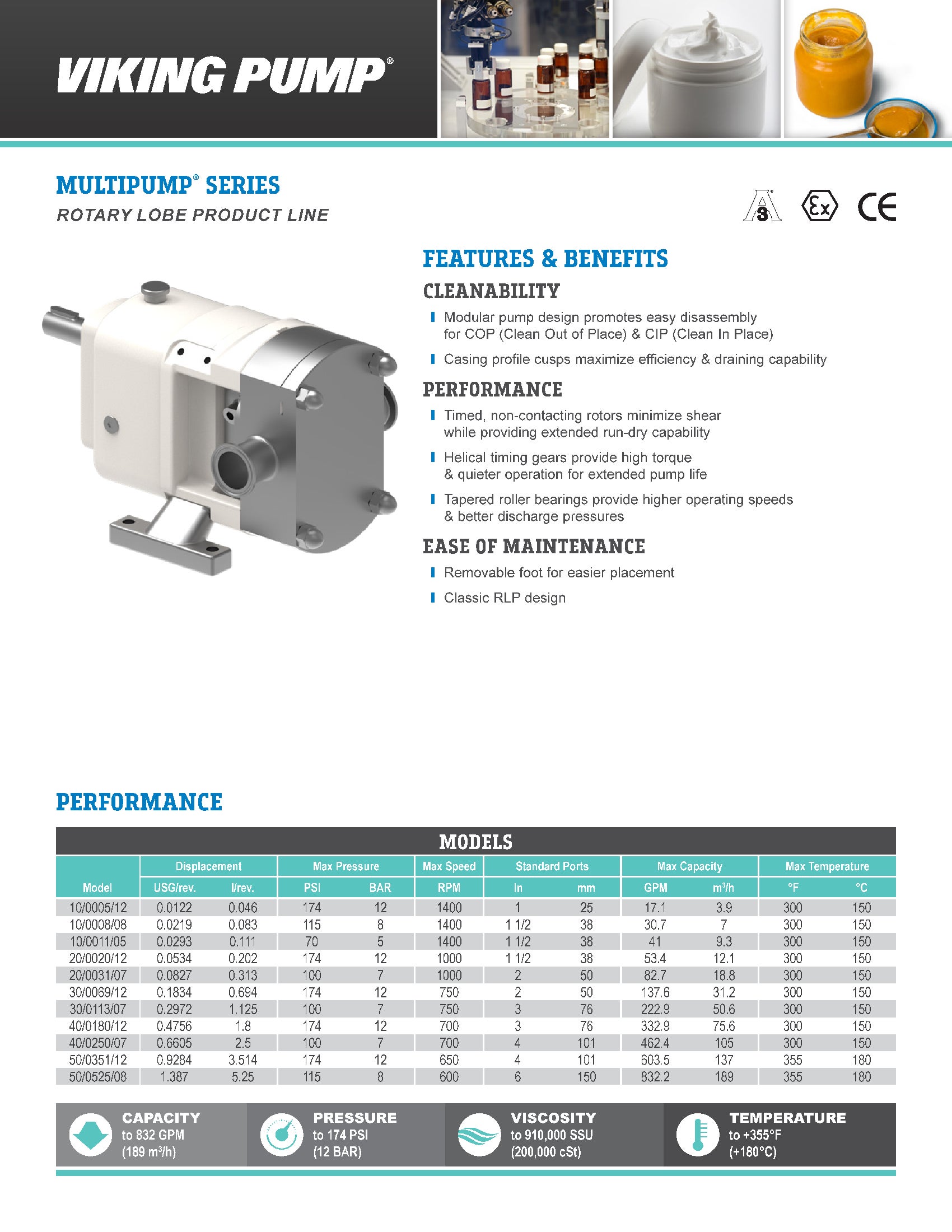

Flyer | Form 1724 | MultiPump Series

Download

Product Flyers

DRAWINGS


CP20/0020/12 - 1.5" DIN 11851 Bottom Shaft Drive	PDF	STEP

CP10/001 - 1.5" Tri-Clamp Top Shaft Drive	PDF	STEP

CP20/0020/12 - 1.5" Tri-Clamp (3A) Top Shaft Drive	PDF	STEP

CP20/0020 - 1.5" SMS Top Shaft Drive	PDF	STEP

CP10/0011 - 1.5" SMS 681 Top Shaft Drive	PDF	STEP

CP20/0031/07 - 2" DIN 11851 Top Shaft Drive	PDF	STEP

CP40/0180/12 - 3" DIN 11851 Vertical	PDF	STEP

CP30/0113/07 - 3" DIN 11851 Vertical	PDF	STEP

CP50/0351/12 - 4" Tri-Clamp Top Shaft Drive	PDF	STEP

CP10/0005/12 - 1" Tri-Clamp Top Shaft Drive	PDF	STEP

CP40/0180/12 - 3" ASA/ANSI Class 150 Bottom Shaft Drive	PDF	STEP

CP10/0005/12 - 1" DIN 11851 Vertical with Flush Connections	PDF	STEP

CP30/0069/12 - 2" DIN 11851 Vertical	PDF	STEP

CP30/0113/07 - 3" DIN 11851 Top Shaft Drive	PDF	STEP

CP10/0005/12 - 1" DIN 11851 Top Shaft Drive with Flushing Points	PDF	STEP

CP10/0008 - 1.5" DIN 11851 Top Shaft Drive	PDF	STEP

CP10/0005/12 - 1" SMS Vertical	PDF	STEP

CP30/0069/12 - 2" Tri-Clamp Bottom Shaft Drive	PDF	STEP

CP40/0180/12 - 3" DIN 11851 Top Shaft Drive with Jacketing	PDF	STEP

CP50/0425/08 - 6" ASA/ANSI Class 150 Bottom Shaft Drive	PDF	STEP

CP10/0008/08 - 1.5" Tri-Clamp Top Shaft Drive	PDF	STEP

CP10/0005/12 - 1" ASA/ANSI Class 150 Top Shaft Drive	PDF	STEP

CP40/0180/12 - 3" SMS Bottom Shaft Drive	PDF	STEP

CP40/0250/07 - 4" Tri-Clamp Vertical	PDF	STEP

CP20/0031/07 with Relief Valve - 2" ASA/ANSI (ATEX) Class 150 Bottom Shaft Drive	PDF	STEP

CP30/0069/12 - 2" DIN 11851 Bottom Shaft Drive	PDF	STEP

CP30/0069/12 - 2" Tri-Clamp Top Shaft Drive with Jacketing	PDF	STEP

CP30/0113/07 - 3" Tri-Clamp Top Shaft Drive	PDF	STEP

CP30/0113/07 - 3" Tri-Clamp Top Shaft Drive with Jacketing	PDF	STEP

CP20/0031/07 with Relief Valve - 2" Tri-Clamp Top Shaft Drive	PDF	STEP

CP30/0069/12 - 2" ASA Class 150 Top Shaft Drive with Jacketing	PDF	STEP

CP10/0005/12 - 1" Tri-Clamp Top Shaft Drive with Jacketing	PDF	STEP

MP10/0005/12 - 1" Tri-Clamp (3A) Top Shaft Drive	PDF	STEP

MP50/0351/12 - 4" Tri-Clamp (3A) Bottom Shaft Drive	PDF	STEP

MP20/0031/07 - 2" SMS with Top Shaft Drive with Jacket Connection	PDF	STEP

MP50/0525/08 - 6" ASA/ANSI Class 150 Bottom Shaft Drive	PDF	STEP

MP20/0020/12 - 1.5" Tri-Clamp Top Shaft Drive with Jacket Connection	PDF	STEP

MP30/0069/12 - 2" Tri-Clamp Vertical	PDF	STEP

MP20/0020/12 - 1.5" Tri-Clamp Top Shaft Drive	PDF	STEP

MP40/0180/12 with Relief Valve and Jacketing - 3" ASA/ANSI Class 150 Vertical	PDF	STEP

MP30/0113/07 with Relief Valve and Jacketing - 3" ASA/ANSI Class 150 Vertical	PDF	STEP

MP30/0113/07 - 3" DIN 11851 Bottom Shaft Drive	PDF	STEP

MP30/0113/07 - 3" Tri-Clamp Bottom Shaft Drive	PDF	STEP

MP30/0069/12 - 2" ASA/ANSI Class 150 Top Shaft Drive with Jacketing	PDF	STEP

MP40/0250/07 - 4" ASA/ANSI Class 150 Top Shaft Drive with Jacketing	PDF	STEP

MP50/0351/12 - 4" ASA/ANSI Class 150 Top Shaft Drive with Jacketing	PDF	STEP

MP40/0180/12 - 3" ASA/ANSI Class 150 Top Shaft Drive	PDF	STEP

MP30/0113/07 - 3" ASA/ANSI Class 150 Top Shaft Drive	PDF	STEP

MP40/0180/12 - 3" SMS Bottom Shaft Drive	PDF	STEP

MP20/0020/12 - 1.5" SMS Top Shaft Drive	PDF	STEP

MP40/0180/12 - 3" Tri-Clamp (3A) Top Shaft Drive	PDF	STEP

MP10/0011/05 - 1.4" Tri-Clamp Top Shaft Drive	PDF	STEP

MP50/0525/08 - 6" ASA/ANSI Class 150 Vertical	PDF	STEP

MP30/0113/07 - 3" SMS Vertical	PDF	STEP

MP20/0031/07 - 2" Tri-Clamp Top Shaft Drive	PDF	STEP

MP30/0113/07 with Relief Valve - 3" ASA/ANSI Class 150 Bottom Shaft Drive	PDF	STEP

MP10/0008/08 - 1.5" SMS Top Shaft Drive with Flushing	PDF	STEP

MP40/0250/07 - 4" Tri-Clamp Vertical	PDF	STEP

MP20/0020/12 - 1.5" Tri-Clamp Vertical with Flushing	PDF	STEP

MP10/0005/12 with Relief Valve- 1" Tri-Clamp Vertical	PDF	STEP

MP10/0008/08 - 1.5" Tri-Clamp Top Shaft Drive	PDF	STEP

MP10/0005/12 with Relief Valve - 1" Tri-Clamp Top Shaft Drive	PDF	STEP

MP30/0069/12 0 2" Tri-Clamp Top Shaft Drive	PDF	STEP

MP50/0525/08 - 6" Tri-Clamp Vertical	PDF	STEP

MP10/0005/12 - 1" ASA/ANSI Class 150 Top Shaft Drive	PDF	STEP

MP20/0031/07 - 2" ASA/ANSI Class 150 Vertical	PDF	STEP

MP20/0020/12 - 1.5" ASA/ANSI Class 150 Vertical	PDF	STEP

MP20/0020/12 - 1.5" ASA/ANSI Class 150 Top Shaft Drive	PDF	STEP
