The 1127A Series™ internal gear pump with O-Pro® Seal technology is the perfect solution for peanut butter, paints & inks, edible oils, and more due to it's reliable sealing and easy maintenance. It can handle flows from 6 to 320 GPM (1.4 to 73 m³/h).
Features & Benefits
- 316 stainless steel construction for process fluid compatibility
- O-Pro® Guard provides a robust sealing solution for many markets
- O-Pro® Guard rebuildable design offers minimal downtime and low cost
Capacity
6 to 320 GPM
1.4 to 73 m³/h
Viscosity
28 to 7,500* SSU
1 to 1,700* cSt
Pressure
to 150 PSI
to 10 Bar
Temperature
-15 to +225 °F
-25 to +105 °C
Options
Porting
Drives
Mounting
Sealing
Specifications
Model | Standard Port Size | Nominal Pump Rating (GPM) | Nominal Pump Rating (m3/h) | Maximum RPM | Maximum Pressure PSI | Maximum Pressure BAR |
---|---|---|---|---|---|---|
H1127A | 1.5 | 6 | 1.4 | 760 | 150 | 10 |
HL1127A | 1.5 | 13 | 3 | 760 | 150 | 10 |
K1127A | 2 | 50 | 11 | 520 | 150 | 10 |
KK1127A | 2 | 65 | 15 | 520 | 150 | 10 |
LQ1127A | 2.5 | 100 | 23 | 520 | 150 | 10 |
LL1127A | 3 | 135 | 31 | 520 | 150 | 10 |
LS1127A | 3 | 160 | 36 | 520 | 150 | 10 |
Q1127A | 4 | 200 | 45 | 350 | 150 | 10 |
QS1127A | 6 | 320 | 73 | 350 | 150 | 10 |
Videos

Soaps
Kettle soap, soap stock, soap skimmings, and liquid soap are a mixture of sodium salts of various fatty acids of natural oils and fats. Common soap is largely a mixture of the sodium salts of palmitic, stearic and oleic acids. Rosin soaps for laundry purposes are made by adding a soap made from rosin or rosin itself to an ordinary soap.

Detergent Gel
Detergent gels are surfactants used for their cleaning properties. These can be for laundry applications or used in dish washing and household cleaning activities.

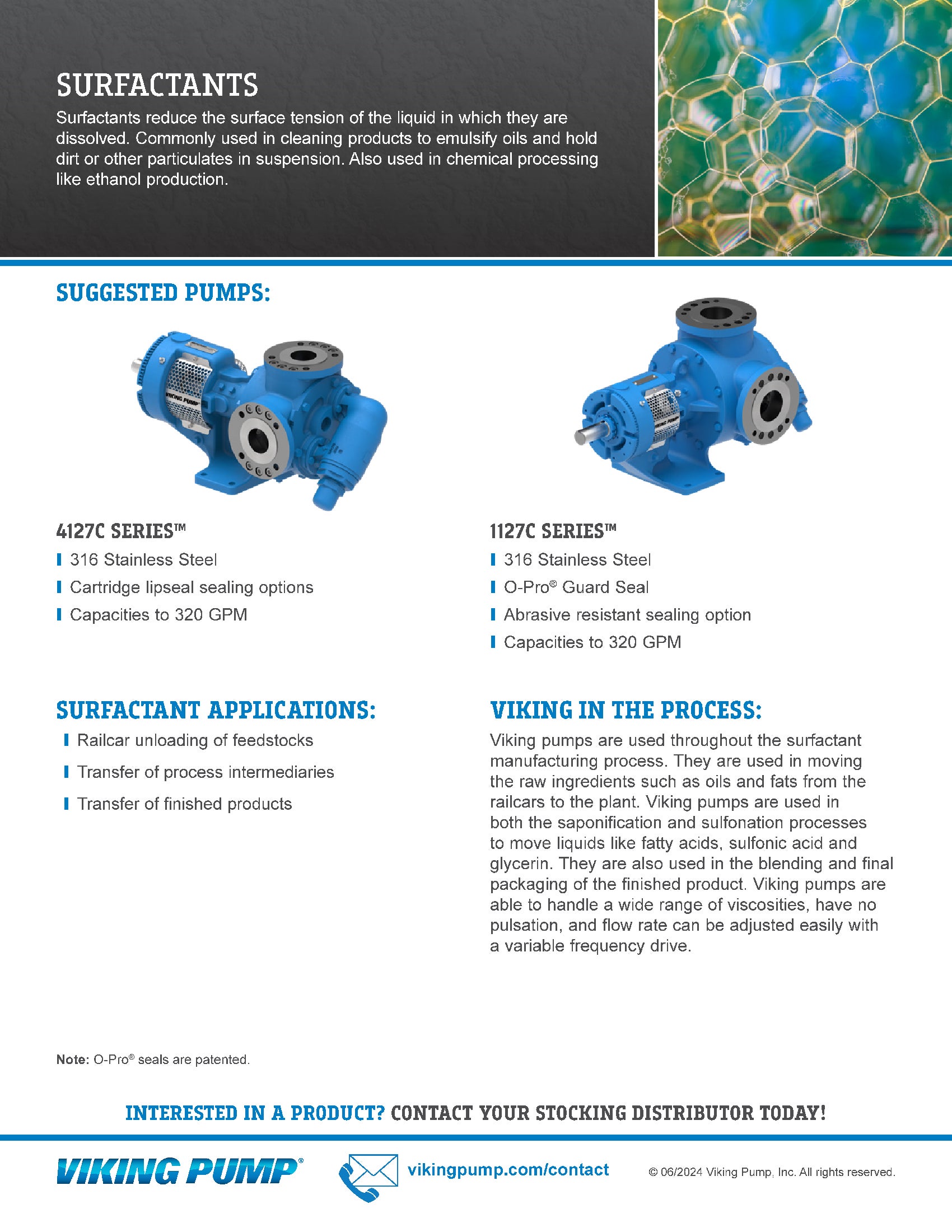

Surfactants
Surfactants reduce the surface tension of the liquid in which they are dissolved. Commonly used in cleaning products to emulsify oils and hold dirt or other particulates in suspension. Also used in chemical processing like ethanol production.

Peanut Butter
Peanut butter is made from mixing ground up peanuts with various additives and fillers. From the mixer, peanut butter is pumped through a deaerator and/or heat exchanger to remove entrained air and drop the temperature prior to being pumped to the jar filling machines.

Paints
Paints are shear sensitive liquids that can have a variety of solvents & pigment load concentrations that bring with them abrasive wear and chemical compatibility concerns.

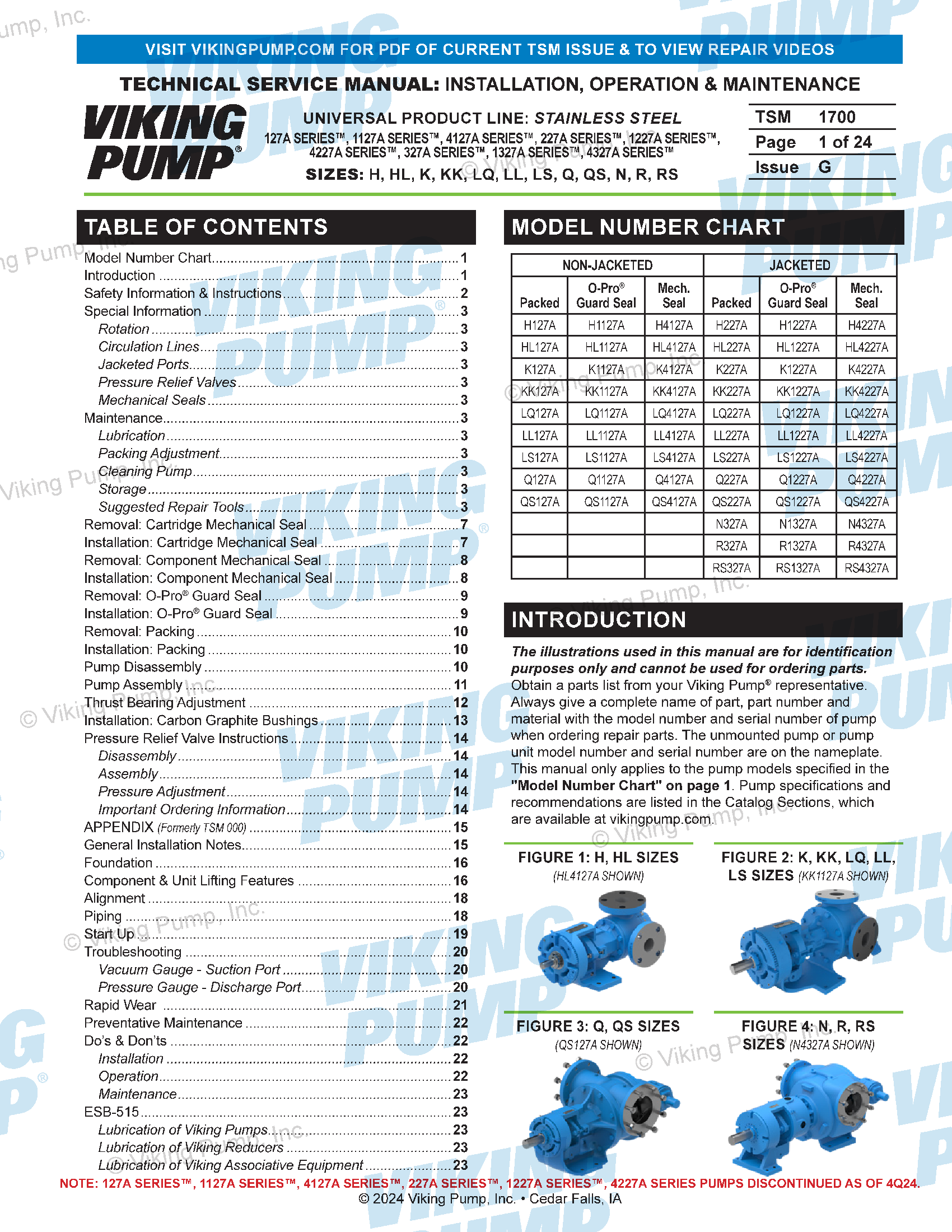

Technical Service Manuals

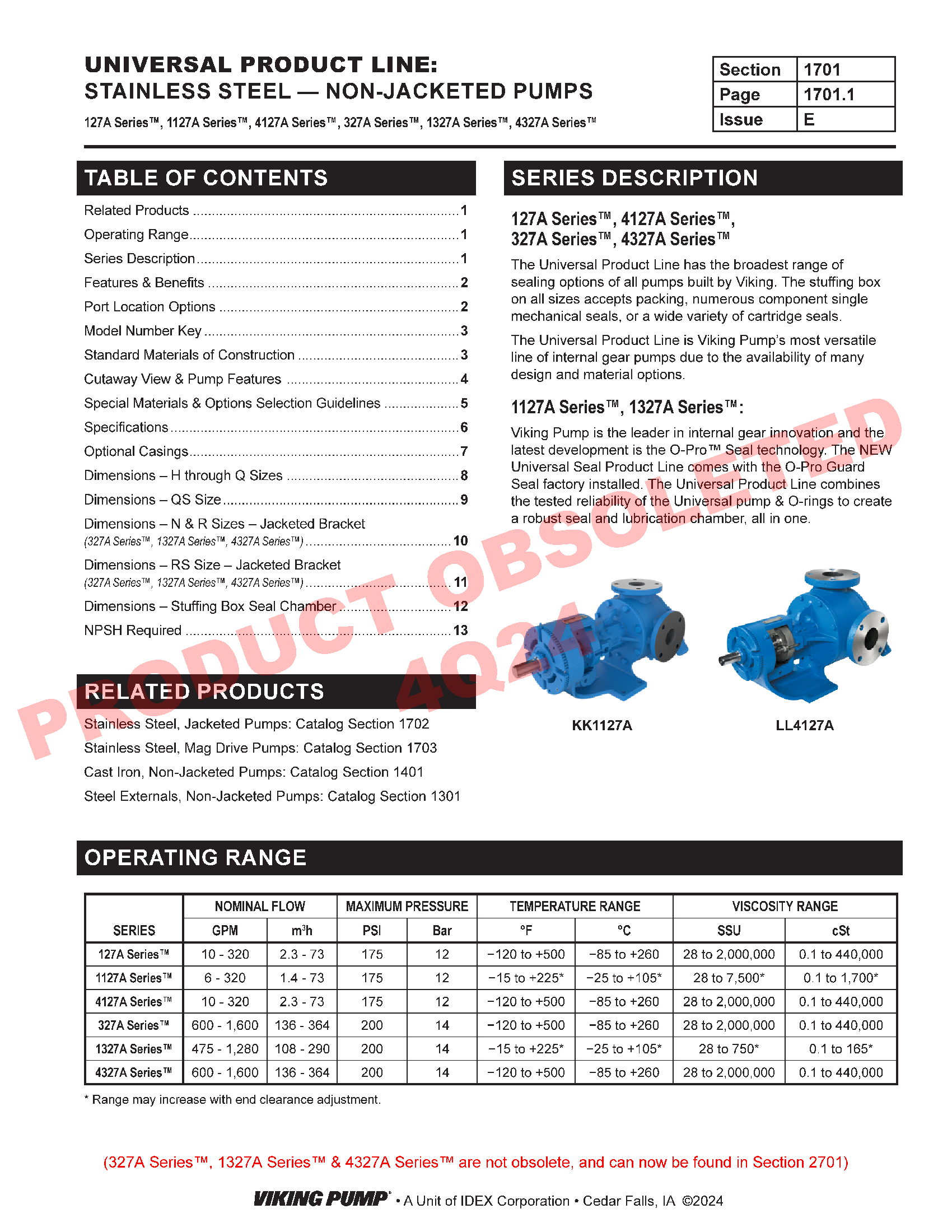

Catalog Sections

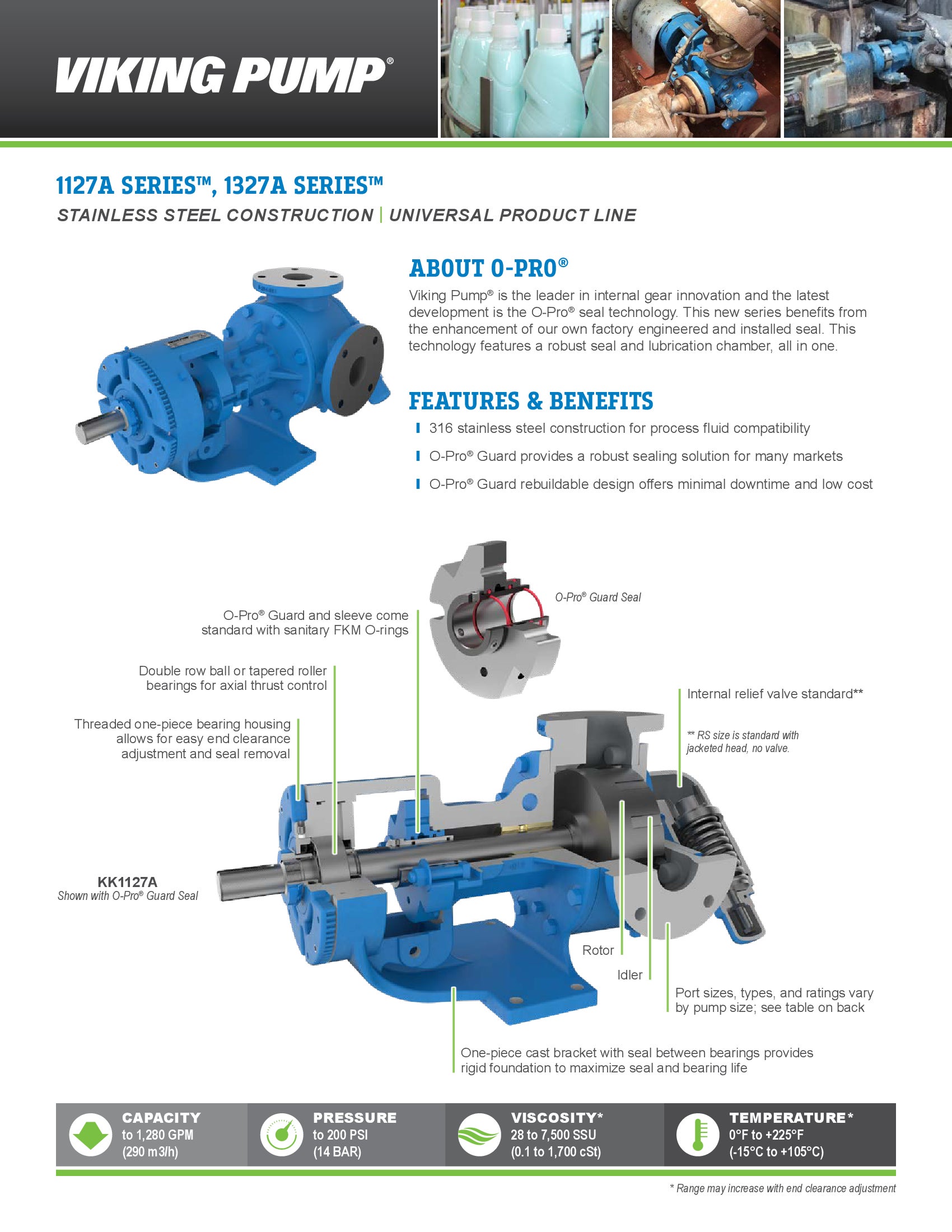

Product Flyers
Application Flyers
Application Flyers
Application Flyers
Application Flyers
-
DRAWINGS
H1127A with Relief Valve - 1.5" Class 150 ANSI RH/LH PDF
STEP
HL1127A with Relief Valve - 1.5" Class 150 ANSI RH/LH PDF
STEP
H1127A with Plain Head - 1.5" Class 150 ANSI RH/LH PDF
HL1127A with Plain Head - 1.5" Class 150 ANSI RH/LH PDF
K1127A with Relief Valve - 2" Class 150 RH/LH PDF
STEP
KK1127A with Relief Valve - 2" Class 150 RH/LH PDF
STEP
K1127A with Plain Head - 2" Class 150 RH/LH PDF
KK1127A with Plain Head - 2" Class 150 RH/LH PDF
LQ1127A with Relief Valve - 2.5" Class 150 ANSI RH/LH PDF
STEP
LS1127A with Relief Valve - 3" Class 150 ANSI RH PDF
STEP
LL1127A with Plain Head - 3" Class 150 ANSI RH/LH PDF
STEP
LL1127A with Relief Valve - 3" Class 150 ANSI RH PDF
STEP
LS1127A with Plain Head - 3" Class 150 ANSI RH/LH PDF
STEP
LQ1127A with Plain Head - 2.5" Class 150 ANSI RH/LH PDF
STEP
QS1127A with Relief Valve - 6" Class 150 ANSI Opposite PDF
STEP
Q1127A with Relief Valve - 4" Class 150 ANSI RH/LH with Studs and Bolts PDF
STEP
QS1127A with Plain Head - 6" Class 150 ANSI Opposite PDF
STEP
QS1127A with Plain Head - 4" Class 150 ANSI RH/LH PDF
STEP
